How to make the steering wheel control work correctly?

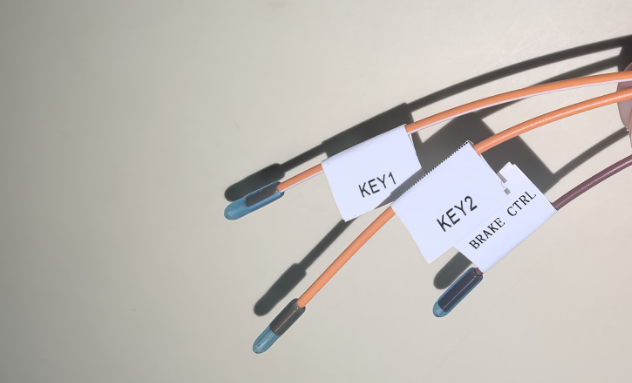

1. If you buy a universal player, you need to connect the KEY1 and KEY2 wires to the steering wheel control wires from your car. And then you need to study the steering wheel control following the steps:

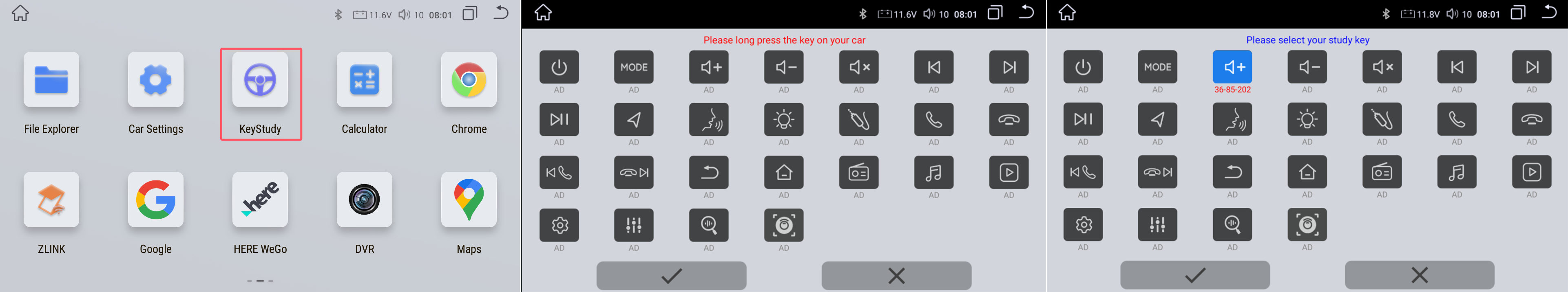

For S series, open KeyStudy APK, long press the button on your car steering wheel, and then the red tips we circle will change to other color, then you click the function you want to set. After all, you click the tick and it will save.

2. If you buy a plug and player for your car without CANBUS decoder, then you also need to study the steering wheel control following the steps: settings-general-steering wheel study. Some plug and play player also need to connect the KEY1 and KEY2 to the steering wheel control wires from your car, it is normal.

After settings, if some key does not work correctly, you can also set the steering wheel control in another way, following steps: CARAPP-SWS study-then follow the instruction on the page.

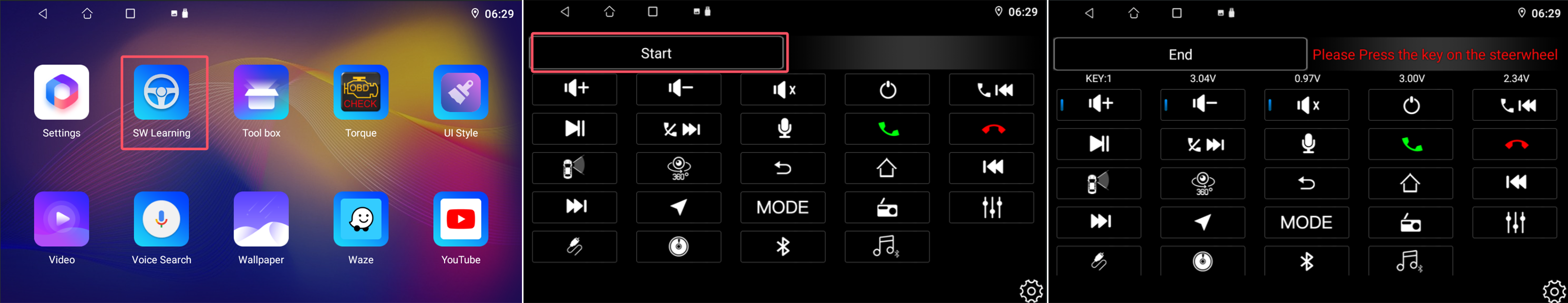

For P series, following: open the SW learning APK, then follow the instruction to study.

For S series, open KeyStudy APK, long press the button on your car steering wheel, and then the red tips we circle will change to other color, then you click the function you want to set. After all, you click the tick and it will save.

For P series, following: open the SW learning APK, then follow the instruction to study.

3. If you buy a plug and play player for your car with CANBUS decoder, you must connect the CANBUS decoder to our power cable set. And connect the 8pin plug from CANBUS decoder to our player, see the below picture we arrow with. Also you need to set the correct CANBUS type according to your car and CANBUS decoder.

For S series following Car Settings-More-Factory-8888-car model-

For P series following CarSetting-Factory Setting-16176699-CAN Type Set-

Some cars with CANBUS system may also need to connect the KEY1 and KEY2 additionally.

For S series, open KeyStudy APK, long press the button on your car steering wheel, and then the red tips we circle will change to other color, then you click the function you want to set. After all, you click the tick and it will save.

For P series, following: open the SW learning APK, then follow the instruction to study.
